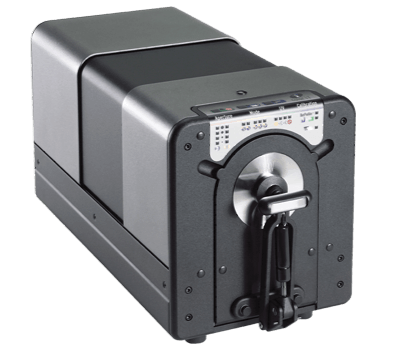

X-Rite Ci5 Advantages

• High Volume Performance.

The ideal mid-range benchtop solution for measuring a wide range of samples that delivers unprecedented operating ease and flexibility in high-volume production operations

• Simultaneously Measure SCI/SCE and Calibrated UV Control.

Tri-beam technology allows simultaneous measurements of SCI (specular component included) and SCE (specular component excluded), enabling correlated gloss measurement and gloss assessment for gloss corrected color formulation. This simplifies measuring pure color or simulating how the human eye responds to surface effects.

• Complete Auto-Configuration Simplifies Setup And Eliminates Measurement Errors.

It’s practically impossible to take bad color measurements because the system automatically configures itself. Plus, each measurement includes a “digital signature” verifying the instrument’s status. So anyone using your data will know it’s reliable – including suppliers, customers or other operators and facilities

• Reflectance and Transmittance.

Three area of view aperture sizes, available for both reflection and total transmittance and a direct transmittance aperture, provide versatility in dealing with various sample sizes. Sample measurement orientation provides the option of either horizontal or vertical sample positioning. These add convenience and give you the most flexibility to match more samples sizes, shapes, and any opacity level

• Remote Standard and Trial Buttons.

Remote read buttons allow the user to trigger a measurement and identify the data as either a standard or trial measurement directly from the Color i5. The sample preview capability allows the user to verify sample targeting which speeds measurements while eliminates errors

Optical Configuration

Tri-beam diffuse 8°, 6” sphere,

2D CCD array/holographic grating

Dimensions

Height 25 cm (10 inches)

Width 23 cm (9 inches)

Depth 47 cm (18 inches)

Weight 12 kg
